AHA Moments

...

Tricks to read legacy code

Though it's always a fancy thing to start with a greenfield, the same chances are that we start with a codebase having been there, large or small, messy or tidy. Reading an existing codebase could be a preparatory work before a project (as mentioned in Object-Oriented Reengineering Patterns by Serge Demeyer), or a daily practice modifying a feature.

Either case, there are some shared tricks to make this potentially painful process a tiny bit less frustrating. Anyway, the worst code in the world, is code written by others, sometimes including your past ego.

Start with a demo

Figure out the feature or the happy path first. Don't even attempt to reveal that from implementation if the feature is more than a fizz buzz.

In rare case, the implementation comes with a feature test, which should tell you what the covered units intend to do. Nevertheless, even that could not provide the value as an end user or QA could demo to you. With the happy path in mind the journey into the codebase would be lots easier.

Not to mention the extra hints of the most valuable parts for business you could infer from the demo, directly or indirectly.

Have a debuggable local deployment

As a static presentation, codebase might not provide the runtime flow which matters under some scenarios. A debuggable deployment is a blessing. Just for the record, here are the arguments to enable debugging for Tomcat and feature to monitor that in IntelliJ.

JPDA_OPTS="-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5006" $TOMCAT_HOME/bin/catalina.sh jpda start

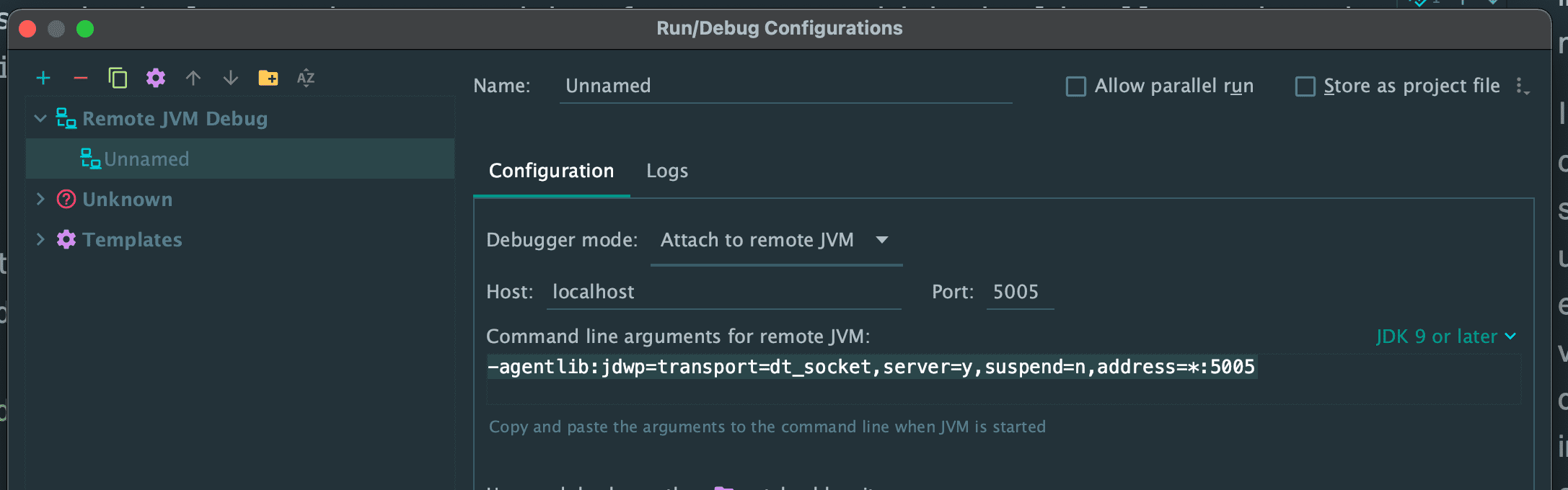

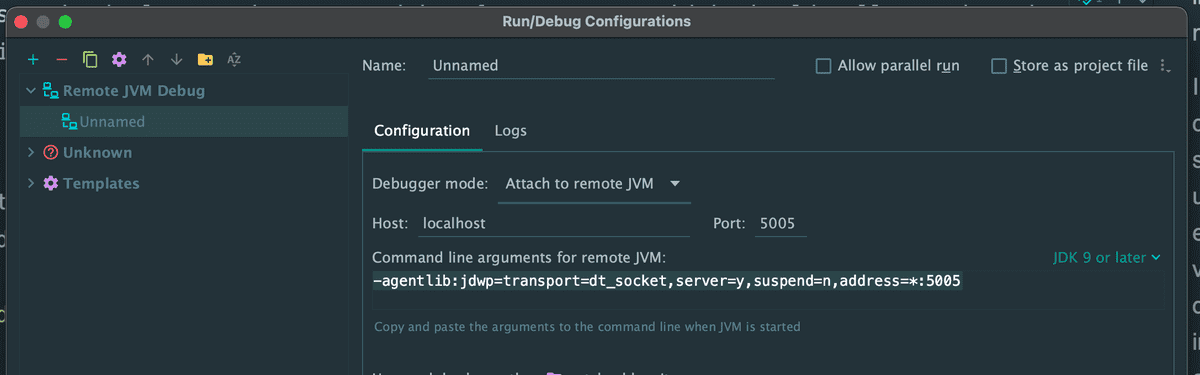

Set up remote debug

Identify the structure

When new to a project codebase, try to find out the frameworks it's using to quickly tell the entrypoints or conventions.

To mention some examples in Java world

  • web.xml for all web applications. You might find the servlets or filters which are not obvious.
  • Annotations in Spring world, like @Controller, @Service, @Configuration etc.
  • Spring configuration XMLs, to which the path should be mentioned in web.xml

Like googling, once you figure out the right keywords, global search could really handy, be it endpoints' name, constants, or a snippet of HTML/JS code you catch in the frontend. That could then serve as an anchor for further investigation.

In IntelliJ, it's presented as "Find in files", which could be brought up with "CMD/CTRL+SHIFT+F". Make sure to familiarise yourself with that.

One of my colleague once showed me an ack-like command line source code searching tool called "thesilverbullet". I don't know ack at all, let alone this new stuff, but it might be worth a look. Here's an example to execute it ag -m=1 --java "<th>some nested HTML code</th>"

Use your IDE for your advantage

In IntelliJ, a set of features are handy in code reading. Find them in your list of actions (CMD/CTRL + SHIFT + A)

  • Find usages
  • Go to / Go to implementation
  • Call hierarchies

I strongly recommend the less known "Call hierarchies" feature for its overview of the call chains.

You really want to stay focused when exploring a strange field. Get used to using the short keys. Actually, I tend to use keyboards as much as I can in all daily works.
